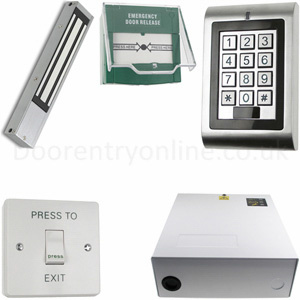

Access control kit 10

Access Control kit 10 is a keypad access system with magnetic lock release, exit button and power supply for standard PIN access control requirements, access control for home, access control for office or any other access control solution

Connection drawings


Keypad manual


Magnet lock


'ZL' bracket installation


Magnetic lock
12/24v dc surface mount slim line mini magnetic lock 10001
Power input: 12v/24v dc selectable via internal jumper links
Holding force: 272kg (600lbs)
Current draw: 500ma @ 12v dc - 250ma @ 24v dc
Magnet size: 250l x 42w x 26d mm
Armature plate size: 185l x 38w x 12d mm

Break glass switch
Surface mounted green emergency break glass reset switch with clear protective cover supplied with 1 x reset key
Single pole with double output for C/NO/NC connections
Size: 90h (To the lowest point) x 88w x 56d mm

Exit button
Surface mounted plastic exit button
Single gang surface mount
Changeover contacts (C/NO/NC)
Size: 85w x 85w mm

Digital keypad K401-I
12v-24v DC fully featured self-contained high security digital keypad, proximity card and key fob reader manufactured from vandal resistant electroplated Zinc Alloy - ideal for internal use
A cost effective '3 in 1' keypad with a huge specification providing PIN, key fob or PIN & key fob access
4 - 6 PIN with #

Main features
Rain hood: No, not required
Input: 12v-24v DC input
Current rating: 50ma
IP rating: No, internal use only
Keypad: Back - lit blue illuminated button keypad
Back box: Vandal resistant electroplated Zinc Alloy with 330 mm cable tail
User codes: 1000 User codes and/or key fobs or cards for relay 1
Card or key fob: The keypad uses standard RFID proximity cards or key fobs
Relay outputs: One, maximum relay output @ 3amp with N.C. & N.O. contacts
Relay output timers: One from 1 second to 99 seconds
Exit button input: Yes
Exit button input: Yes
Fitting: Surface mount
Size: 120h x 76w x 25d mm
Cable tail size: 330 mm

A) All features are keyboard programmable
B) Non-volatile memory in the event of a power failure
C) 3 LED display indication status

Power supply
Ivory white cabinet (Small)
Switch mode 13.8 volt dc regulated output 1amp power supply
Additional battery charging output
Battery deep discharge protection (Electronic)
LED Indication for mains input, DC output & battery charge/low charge
Multiple cable entry point
Size of power supply: 225h x 195w x 75d mm

Can the keypad be installed outside?
We'd not recommend it as it should be installed within a porch area or under a canopy and certainly not in direct line of rain

Is the lock release for external use?
If in direct line of rain then no, the lock connections must be concealed to avoid weather damage

Is this system easy to install?
This will depend upon your experience, however, it is not too difficult, neither is it difficult to program the keypad. There are drawings for this in the "Specification & Manual" tab

Can I have two keypads, one for entering and one for exiting?
Yes if you wish, just order an addtional keypad Here

What cable do I need?
You can use any cable you like for this, we suggest using 3 paired or 4 paired standard alarm cable that you can purchase from any local electrical or DIY store

Tech Tips
It is advisable to periodically clean the keypad facia to prevent ingress of dirt or general grime which will accumulate between the buttons and could cause the keypad buttons to become "Sticky". This is common with all mechanical moving parts and more so dependent upon the installation area and general usage, however, regular preventive maintenance will ensure long lasting operation of the item

This magnetic lock will operate via 12v dc or 24v dc, however, please ensure you check the wiring connections correctly for use with a 12v dc power supply or 24v power supply before you turn the power on
If you fail to check this, then you run the risk of either the magnetic lock running very hot or it not locking correctly
Eventually you will cause damage to the system you have installed
Periodically clean the surface of both the magnet and armature plate with light oil

Armature plate alignment

1 x Magnetic lock release with adjustable ZL brackets (Fail open, power required to lock)

1 x Emergency break glass resettable switch with protection cover

1 x K401-I digital keypad with up to 1000 user codes

1 x PB1 plastic exit button (Surface mounted)

1 x 12v dc power supply
